An auto-gate driver motor system burns about 10 to 20W of electricity during standby. HYBRID POWER System will cut off the main supply during standby. The electronic system will get power from the standby battery at merely 0.2 Watt.
The main supply will only be on when running the motor or charging the battery. This results in a reduction of energy consumption by 95%

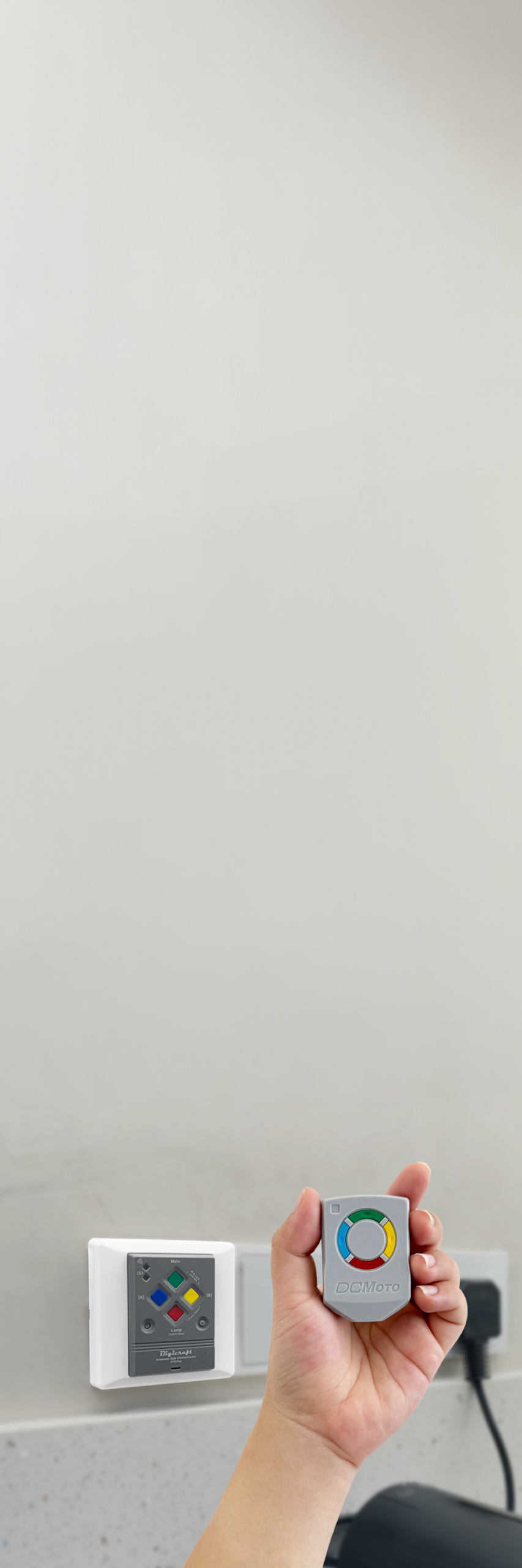

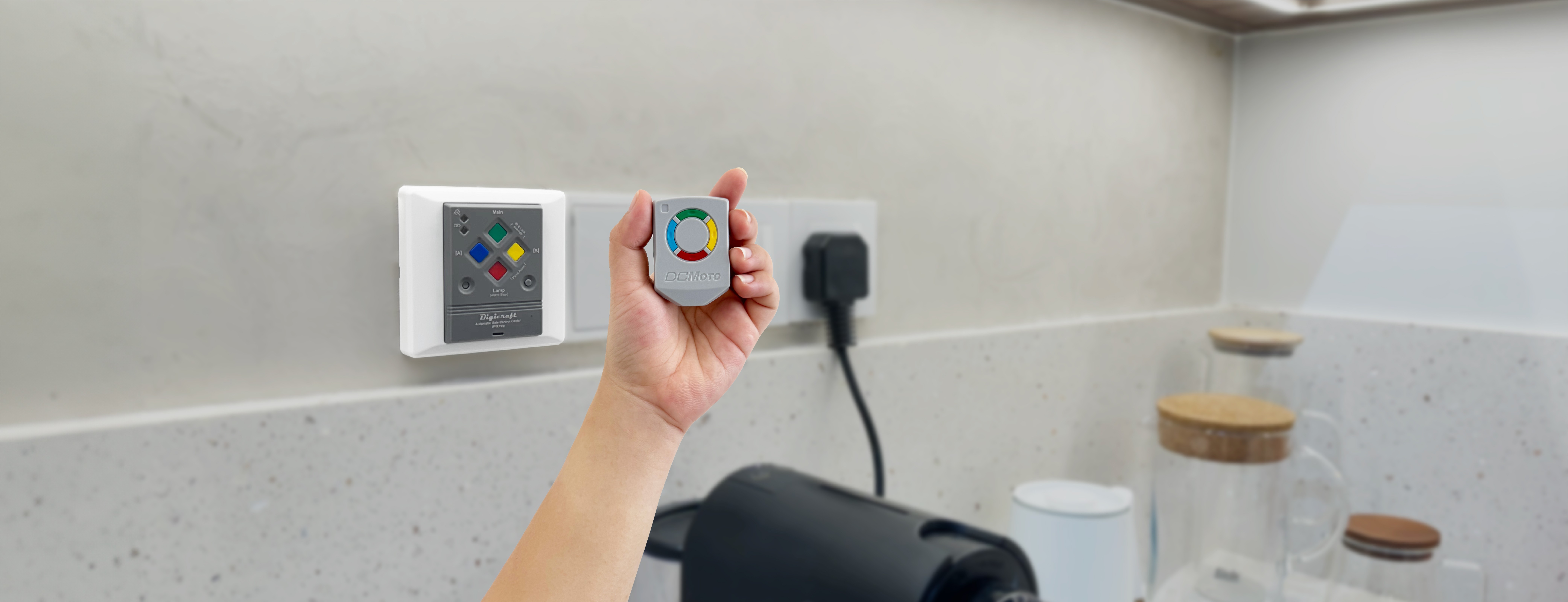

Wireless Keypad can be installed anywhere in the house without running any wires.
AntiSpy-II
Prevent hackers from cloning your remote without authorization.
Panic Alarm
Users can activate the alarm to alert others and seek help in case of an emergency.
Users can control DCMOTO’s autogate via the “Digicraft Home” mobile app. An IoTHub v2 is required, which pairs with the home WiFi. This setup is ideal for large families or owners of multiple properties, offering the convenience of always having the remote within reach on their phone.
*Product Sold Separately
Upgrade your safety with our infrared dual beams dual sensor add-on feature. It is simple to install without requiring extra wiring. This feature is particularly valuable for families with children and pets.
*Product Sold Separately

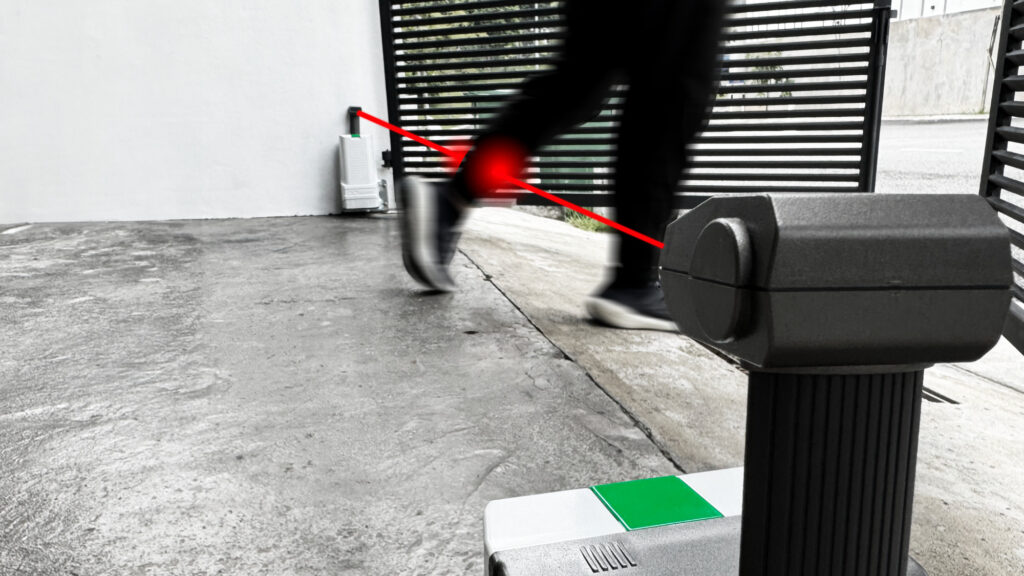

The system uses infrared beams to prevent accidental gate closures and reduce the risk of pinching. If an unexpected obstacle is detected during gate operation, the gate will automatically reverse to a safe position and emit an audible warning tone to alert the user of potential hazards. In case of any malfunction, users have the option to override the obstacle detection system.
Auto-close timer can be enabled when safe beams are installed. Users can set closure intervals of 1 or 2 minutes. This feature ensures the gate closes automatically, preventing instances where users may forget to close the gate.

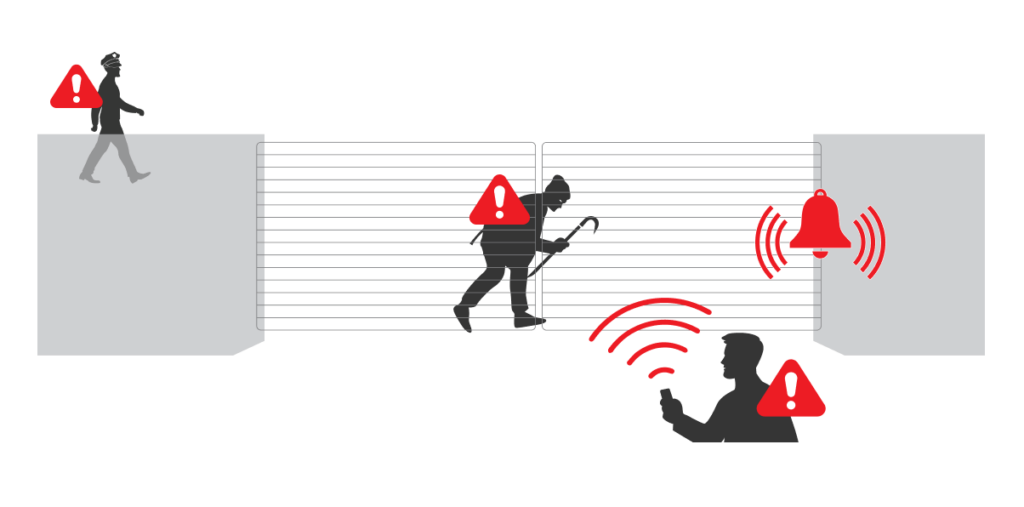

Intruder alarm can be armed when safety beams are installed. When armed, the siren will be triggered upon detection of obstacles by the infrared safety beams, alerting users, nearby neighbors, or security.
* Test performed using 12V7Ah healthy battery. Performance may vary depending on gate mass and battery quality.
| (per wing) | ||
|---|---|---|
| Max width (m) | Max weight (kg) | |
| Swing Gate | 2 | 150 |
| Folding Tracked Gate | 4 | 200 |
| Folding Trackless Gate | 3.4 | 150 |
| Motor Type: | 120W PMDC Motor |
| Standard Operating Voltage: | 12V ~ 19V (DC) |
| Standard Power Usage: | 0.015A (Standby) 12A (Maximum Operating Current) |
| Battery Life: | 3 Days Standby* * Performance may vary due to loading condition * Tested under laboratory-controlled conditions using a 7AH 12V Battery (Healthy, Full Charge) and a single motor |

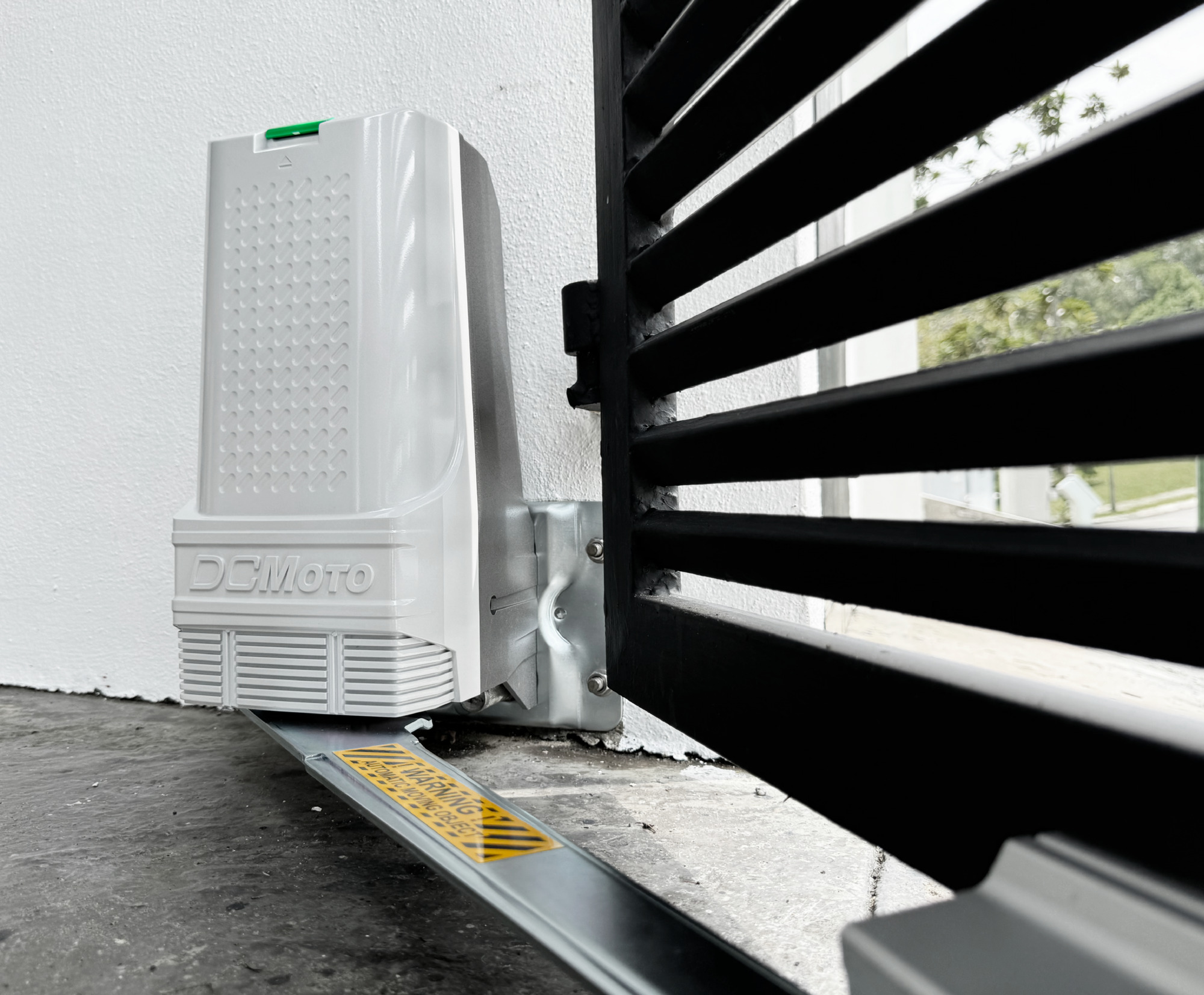

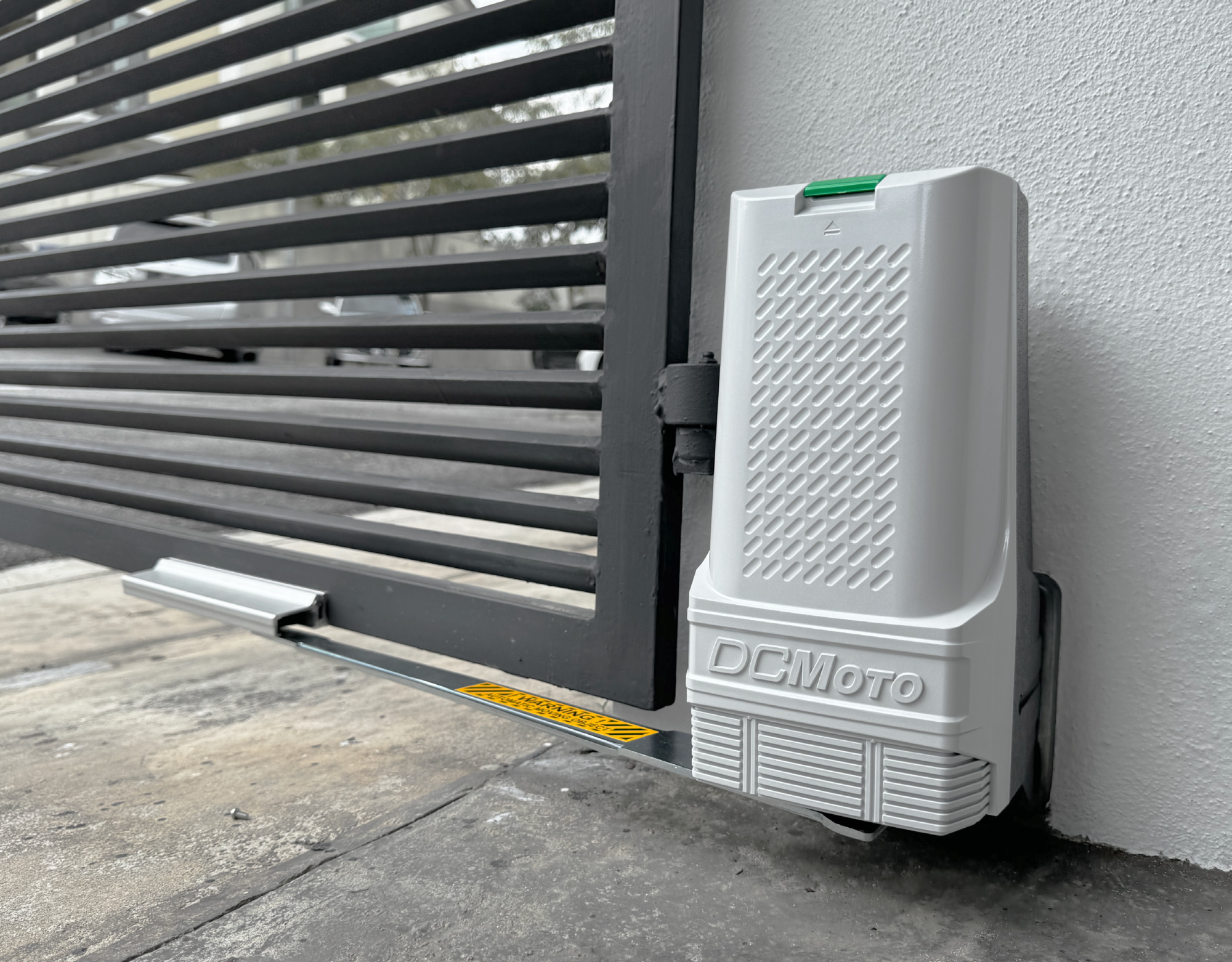

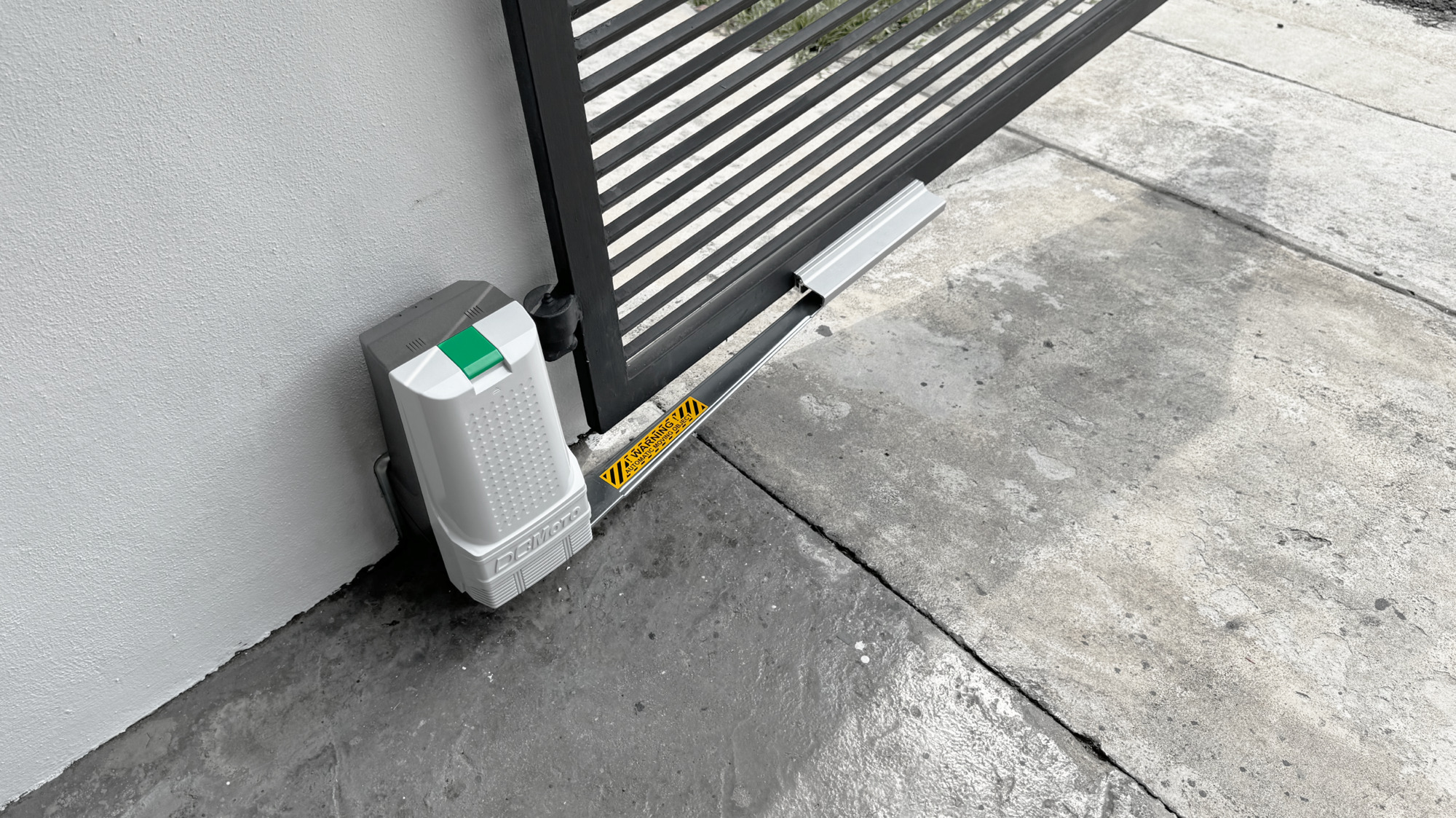

| Driver: | Single Arm Rotary Motion |

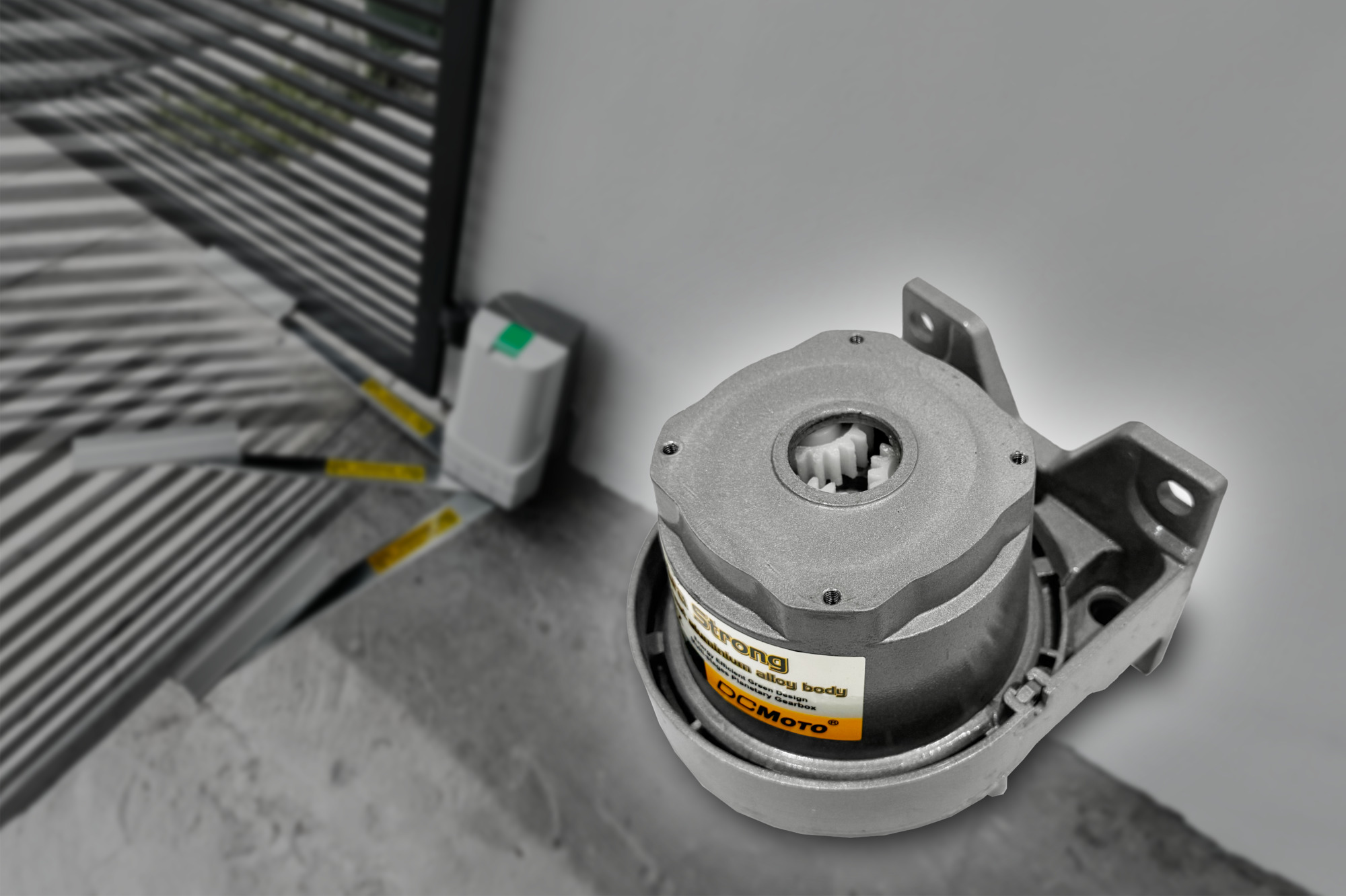

| Gear System: | 25 element 4 stage planetary gear train |
| Transmission Reduction Ratio: | 1:2310 |
| Maximum Output Torque: | 196Nm (dynamic) 318Nm (static) |
Standard Operating Time: | (90 Degree Movement) 10 s (90%)** 16 s (100%)** |
| Recommended Operation Rate: | Less than 100 operations per day **Performance may vary based on gate mass and type |
| Processor: | Microcontroller Embedded System |
| Remote Radio Frequency: | 315MHz |
| Remote Radio Protocol: | Digicraft® AntiSpy Technology |
| Motion Control: | Digicraft® 3-Speed Motion System |

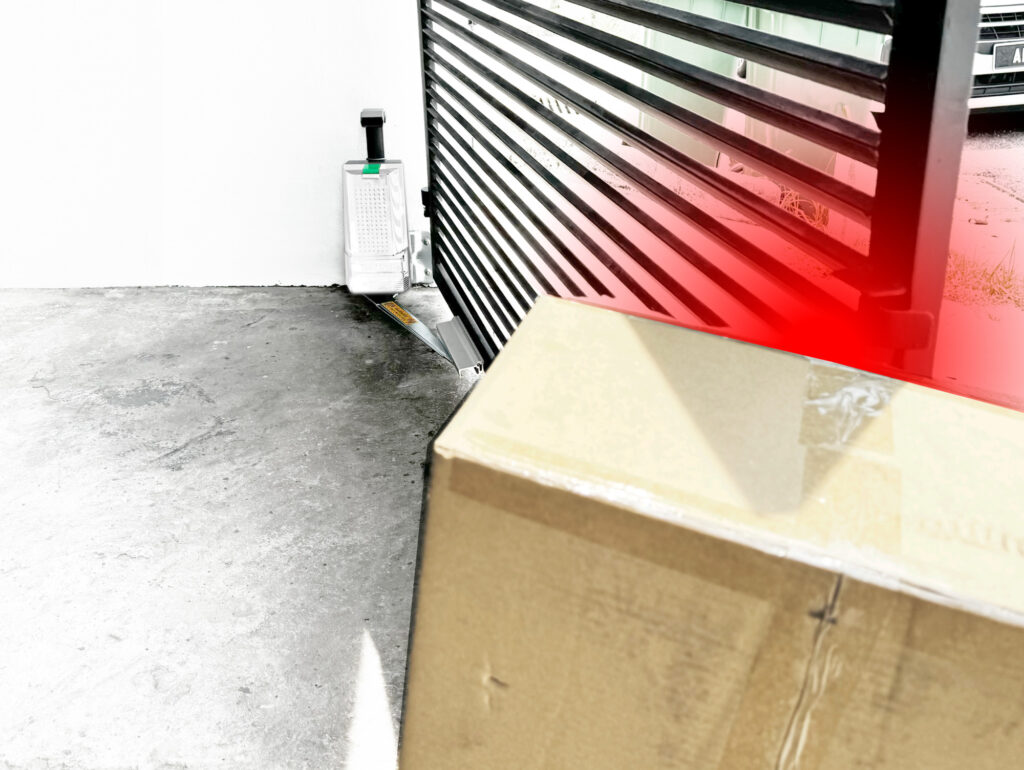

| Overload Protection: | Yes |
| Obstacle Detection:: | Yes (Safety Beam Required) |

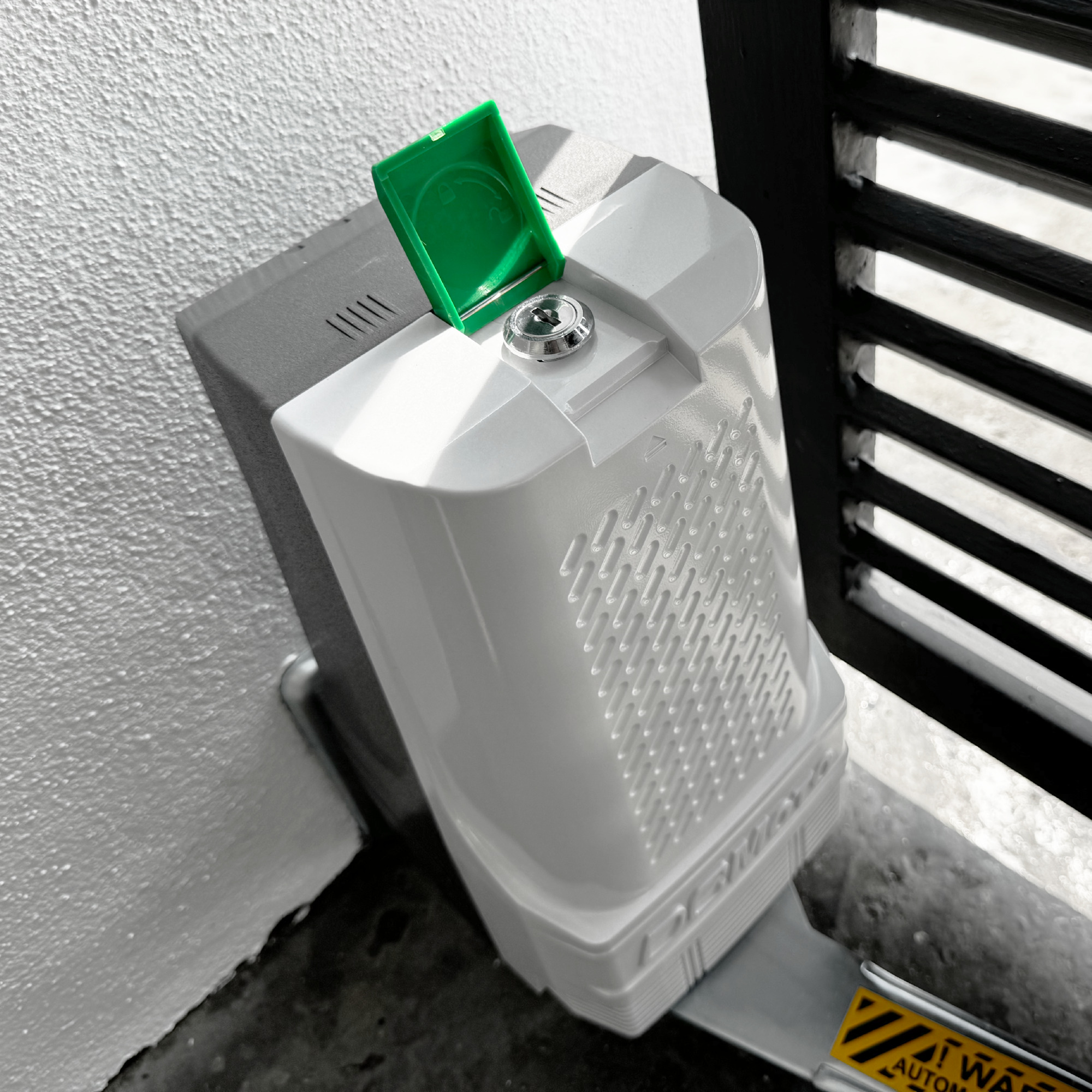

| Locking Mechanism: | Electromagnetic lock with manual key release |
| Panic Alam: | Yes (Triggered from remote control) |
| Intruder Alarm: | Yes (Arming Required) |

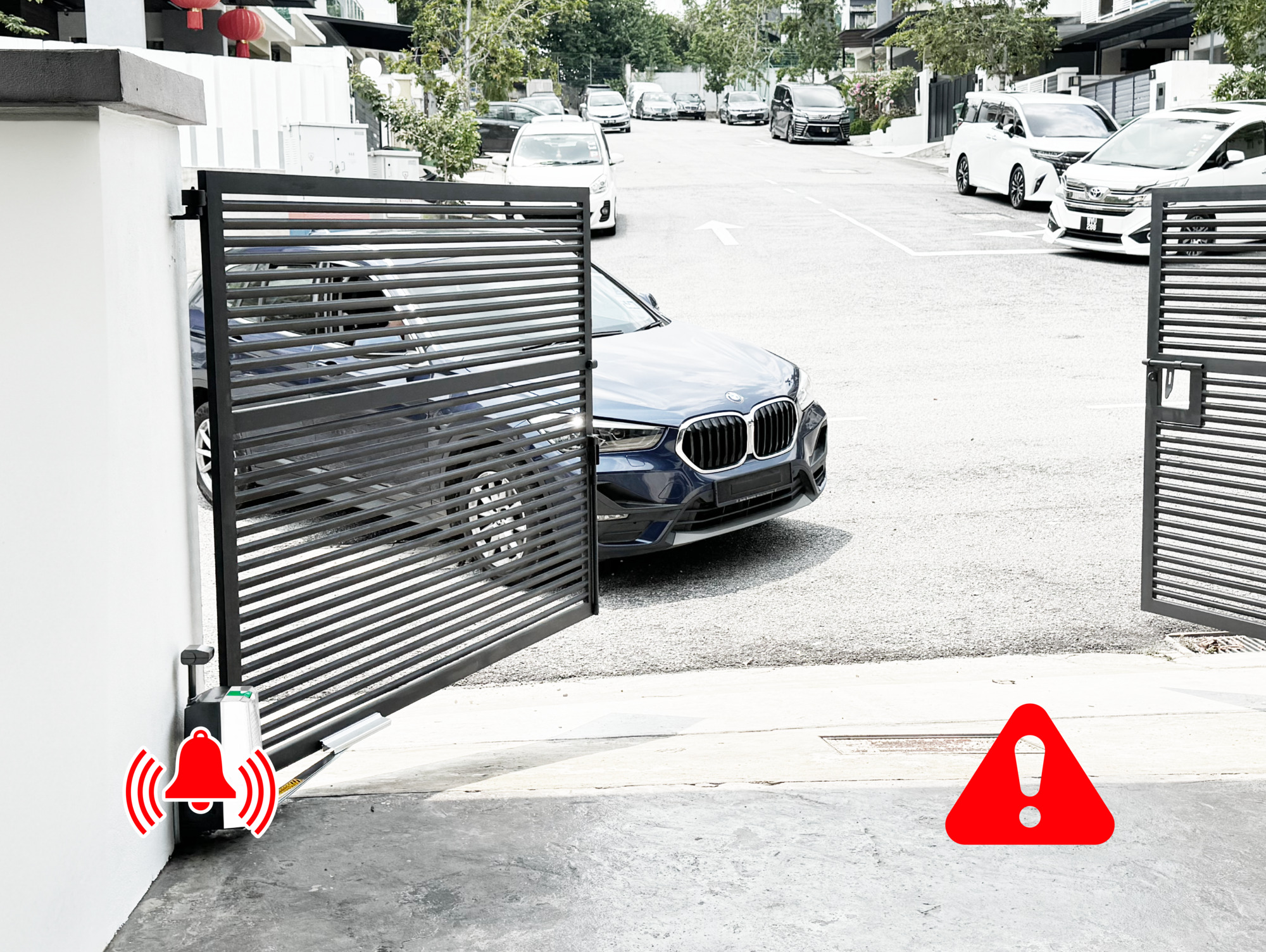

| Gate Motion Alert: | Yes (Setting Required) |
| Smart Home Hub Control: | Yes (Digicraft Home IoTHub Required) |
| Backup Battery: | Yes |

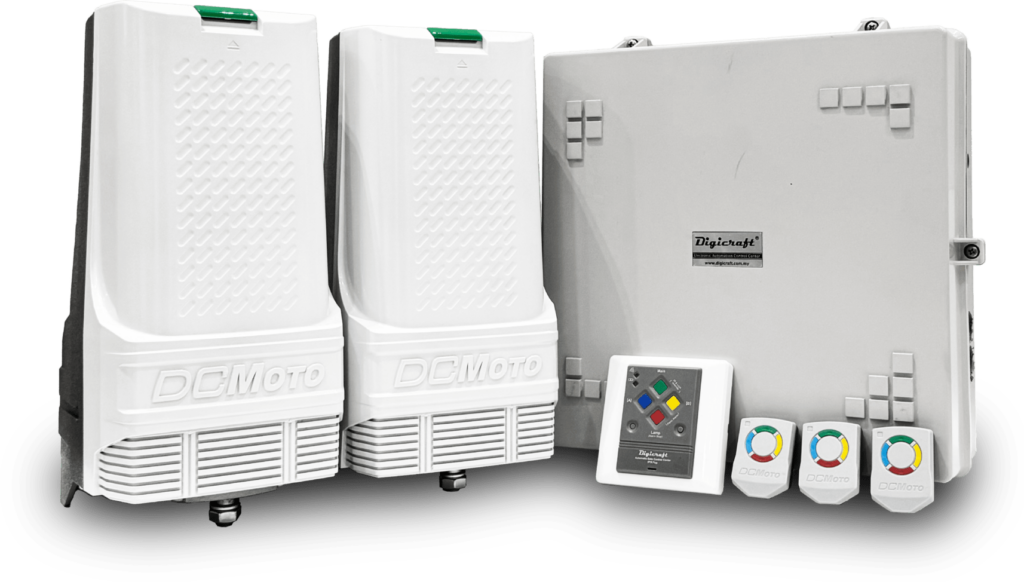

| Features | GFM 975 | GFM 925 |
|---|---|---|
| Power Source | AC or SOLAR | AC |

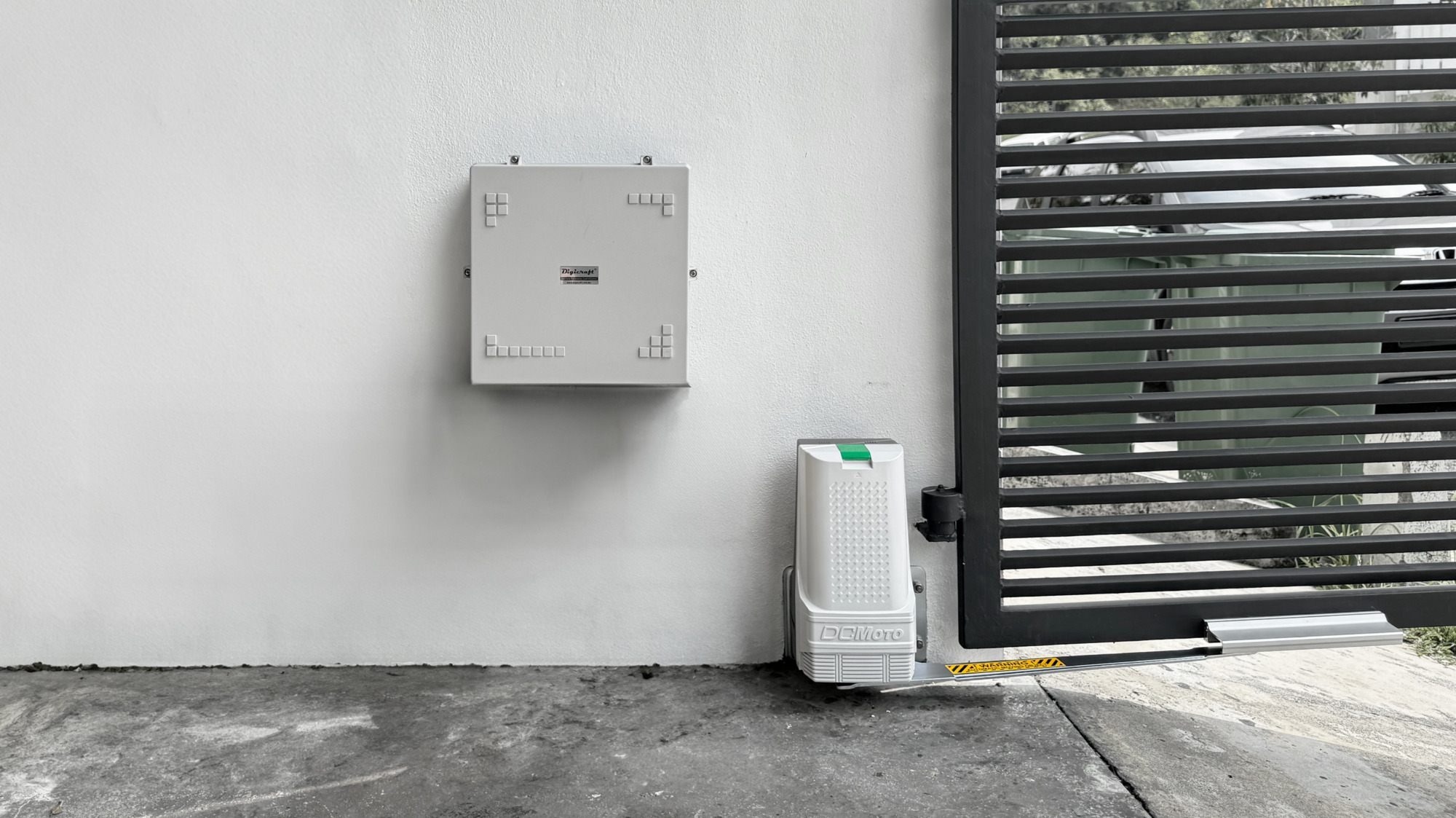

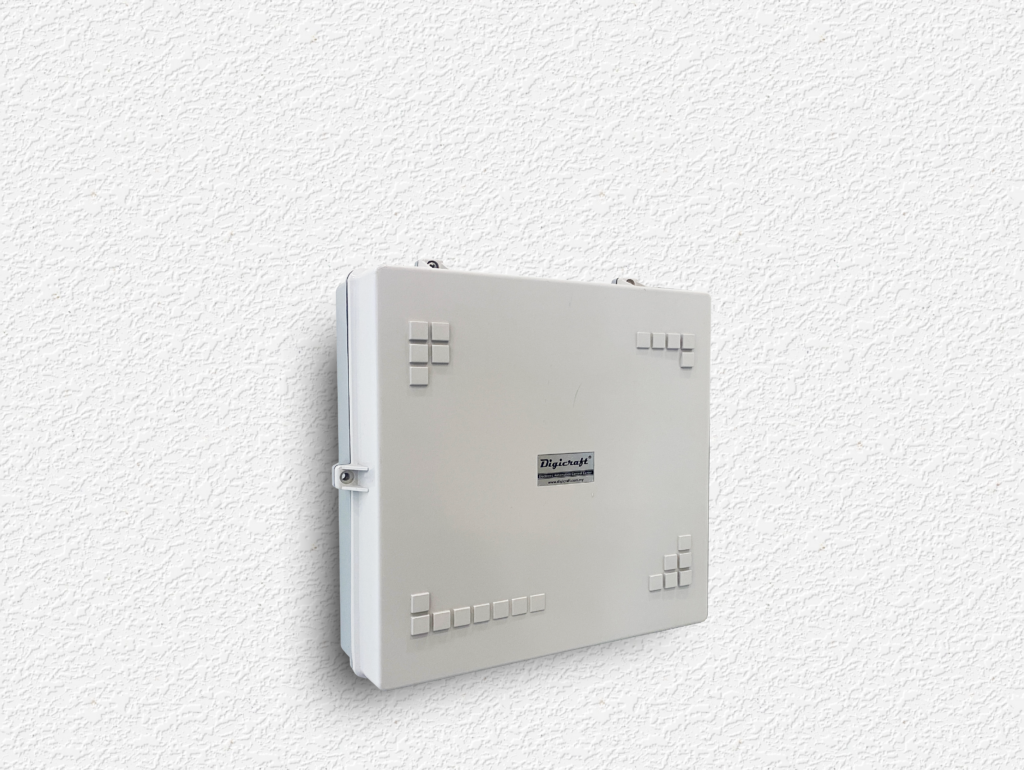

| Control Board Packaging | Built-in Smart Motor | External in Control Panel Box |
| Remote Control | 4 | 3 |
| Wireless Keypad | – | 1 |
| Remote Wall Mounted Holder | 2 | – |
| Remote Control Spec | AntiSpy-II | AntiSpy |
| SoftGlide Motion | Yes | – |
| Backup Battery | up to 7 days | up to 3 days |
| Remote Cloning Lock | Yes | – |
| Panic Alarm | Yes | Yes |
| Motion Alert | Yes | Yes |

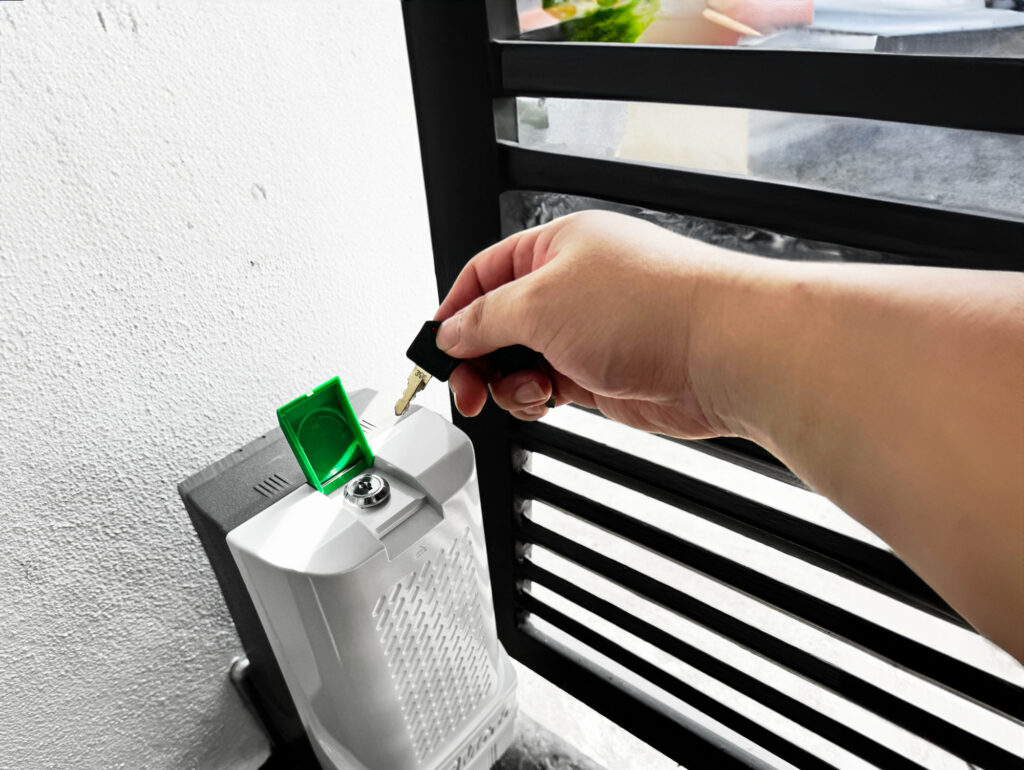

| Manual Override | Yes | Yes |
| IR Obstacle Detection (Safety Beam)* | Plug & Play | Extra Underground Wire Required |
| Automatic Close Timer** | Yes | Yes |
| Intruder Alarm** | Yes | Yes |
| Mobile Remote App Compatibility* | Yes | Yes |
| Pillar Light Control* | Yes | Yes |
*Product Sold Separately
**Require IR Obstacle Detection (Safety Beam)
DCMoto does not provide any warranty service for products purchased through online shopping by third party sellers or unauthorised dealers.
