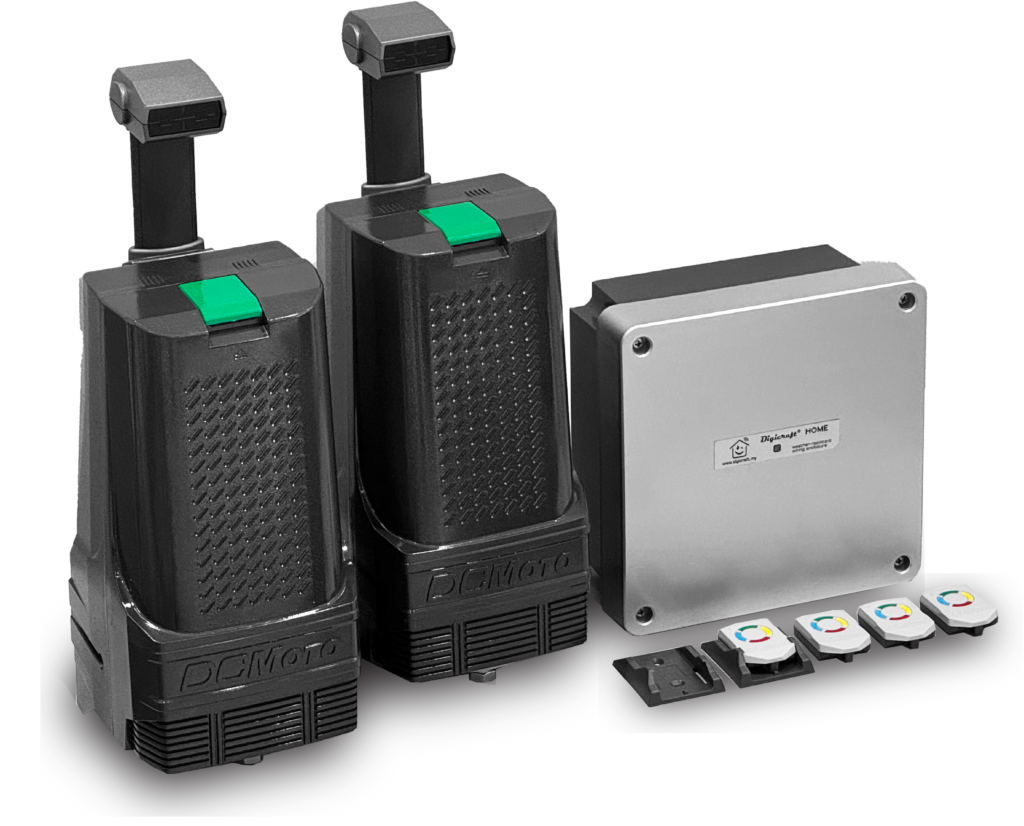

DCMOTO’s 5th generation autogate driver system

  • Designed for Today’s Lifestyle
    Building on widely acclaimed reliability and technology of the previous generation.

  • Highly Adaptable Power Option
    Designed to adapt to your setup. Our solar power option eliminates the need for underground wiring.

  • Even Secure
    Enhanced remote control using AntiSpy-II technology, together with multifunction control settings and cloning lock designed for convenience and security.

  • Easy maintenance
    Our latest smart motor system features a built-in plug-and-play control board, enabling easy part replacement and tool-less wiring.

  • Seamless Gate Operation
    SoftGlide™ motion system ensures smooth and efficient gate operation for lasting performance.

Smart Motor – Plug & Play

The all-new all-in-one smart motor features a built-in control board, electric lock, motor, and initial stage planetary gears. All wiring connections are designed to be plug-and-play using unique connectors, ensuring correct connections and reducing human errors.

Main Power

Siren Buzzer

Safety Beam

Smart Motor – Plug & Play

The all-new all-in-one smart motor features a built-in control board, electric lock, motor, and initial stage planetary gears. All wiring connections are designed to be plug-and-play using unique connectors, ensuring correct connections and reducing human errors.

Main Power

Siren Buzzer

Safety Beam

Power Box – Clean and Simple

The conventional control panel box has been redesigned to significantly reduce complexity and now functions solely as an uninterruptible power supply unit, hence the name “Power Box”. By integrating key functions directly into the design, we’ve reduced the number of wires by more than half, resulting in a cleaner and safer system.

Enjoy straightforward installations and a tidier setup with our Power Box.

Power Box – Clean and Simple

The conventional control panel box has been redesigned to significantly reduce complexity and now functions solely as an uninterruptible power supply unit, hence the name “Power Box”. By integrating key functions directly into the design, we’ve reduced the number of wires by more than half, resulting in a cleaner and safer system. Enjoy straightforward installations and a tidier setup with our Power Box.

Power Configuration That Adapts to Your Setup

Our system supports multiple power configurations and is easily customisable to suit specific customer requirements.

AC Wiring Diagram

The most common installation method involves connecting through concealed AC wiring, which requires hacking into walls and laying underground cables.

SOLAR Wiring Diagram

Simplify installation with individual solar panels on each side of the motor system, eliminating the need for underground wiring connections and the potential need for hacking into walls.

AntiSpy-II Remote Controls – Even Secure

Designed for convenience and safety, the new AntiSpy-II remote control features an even more secure mechanism.

Learn More

AntiSpy-II
Improved encrypted rolling code technology that prevents replay attacks from unauthorized adversaries.

Panic Alarm
Users can activate the alarm to alert others and seek help in case of an emergency.

Cloning Lock
No more worries about unauthorized remote control cloning by untrusted visitors or service personnel.

AntiSpy-II Remote Controls
– Even Secure

Designed for convenience and safety, the new AntiSpy-II remote control features an even more secure mechanism.

Learn More

AntiSpy-II
Prevent hackers from cloning your remote without authorization.

Panic Alarm
Users can activate the alarm to alert others and seek help in case of an emergency.

Cloning Lock
No worries about unauthorized remote key cloning by visitors or service personnel.

Mobile App Remote Control
 - Keep Your Remote Close

Users can control DCMOTO’s autogate via the “Digicraft Home” mobile app. An IoTHub v2 by Digicraft Home® is required, which pairs with the home WiFi. This setup is ideal for large families or owners of multiple properties, offering the convenience of always having the remote within reach on their phone.

*Product Sold Separately

Learn More

Mobile App Remote Control
– Keep your remote close

Users can control DCMOTO’s autogate via the “Digicraft Home” mobile app. An IoTHub v2 is required, which pairs with the home WiFi. This setup is ideal for large families or owners of multiple properties, offering the convenience of always having the remote within reach on their phone.

*Product Sold Separately

Learn More

Infrared Safety Beams – Enhanced Safety

Upgrade your safety with our infrared dual beams dual sensor add-on feature. It is simple to install without requiring extra wiring. This feature is particularly valuable for families with children and pets.

*Product Sold Separately

Obstacle detection

The system uses infrared beams to prevent accidental gate closures and reduce the risk of pinching. If an unexpected obstacle is detected during gate operation, the gate will automatically reverse to a safe position and emit an audible warning tone to alert the user of potential hazards. In case of any malfunction, users have the option to override the obstacle detection system.

Auto-close timer

Auto-close timer can be enabled when safe beams are installed. Users can set closure intervals of 1 or 2 minutes. This feature ensures the gate closes automatically, preventing instances where users may forget to close the gate.

Intruder alarm

Intruder alarm can be armed when safety beams are installed. When armed, the siren will be triggered upon detection of obstacles by the infrared safety beams, alerting users, nearby neighbors, or security.

* Result for solar version. Test performed using 12V7Ah healthy battery. Performance may vary depending on gate mass and battery quality. The AC system can last up to 7 days in case of a power failure, due to the battery being shared between motors.

Technical Specifications

Maximum Rating
(per wing)
Max width (m) Max weight (kg)
Swing Gate 2 150
Folding Tracked Gate 4 200
Folding Trackless Gate 3.4 150
Motor Type: 120W PMDC Motor
Standard Operating Voltage: 12V ~ 19V (DC)
Standard Power Usage: 0.015A (Standby)
12A (Maximum Operating Current)
Battery Life: 1500 Operations*
14 Days Standby*

* Performance may vary due to loading condition. Tested under laboratory-controlled conditions using a 12V7Ah Battery (Healthy, Fully Charged) and a single motor

Driver: Single Arm Rotary Motion
Gear System: 25 element 4 stage planetary gear train
Transmission Reduction Ratio: 1:2310
Maximum Output Torque: 196Nm (dynamic)
318Nm (static)
Maximum Speed: 0.17 rad/s**
Standard Operating Time: 10 s (90%)**
16 s (100%)**
Recommended Operation Rate: Less than 100 operations per day

** 90 Degree Rotation. Performance may vary based on gate mass and type

Processor: Microcontroller Embedded System
Remote Radio Frequency: 315MHz
Remote Radio Protocol: Digicraft® AntiSpy-II Technology
Motion Control: Digicraft® SoftGlide™ Motion System
Overload Protection: Yes
Obstacle Detection: Yes (Safety Beam Required)
Locking Mechanism: Electromagnetic lock with manual key release
Panic Alam: Yes (Triggered from remote control)
Intruder Alarm: Yes (Arming Required)
Gate Motion Alert: Yes (Setting Required)
Smart Home Hub Control: Yes (Digicraft Home IoTHub Required)
Backup Battery: Yes

Compare The Model

Features GFM 975 GFM 925
Power Source AC or SOLAR AC
Control Board Packaging Built-in Smart Motor External in Control Panel Box
Remote Control 4 3
Wireless Keypad 1
Remote Control Spec AntiSpy-II AntiSpy
SoftGlide Motion Yes
Backup Battery up to 7 days up to 3 days
Remote Cloning Lock Yes
Panic Alarm Yes Yes
Motion Alert Yes Yes
Manual Override Yes Yes
IR Obstacle Detection* Yes Yes
Automatic Close Timer* Yes Yes
Intruder Alarm* Yes Yes
Mobile Remote App Compatibility* Yes Yes
Pillar Light Control Coming Soon Yes
